Capturing a high-fidelity image of a distant barred spiral galaxy requires precision, patience, and the right processing workflow.

Below is the technical breakdown of a deep-space imaging session targeting Messier 83 (M83), commonly known as the Southern Pinwheel Galaxy.

The data was collected using a DWARFLAB DWARF mini smart telescope over an integration window of 59 minutes and 15 seconds.

What’s in a Name? Why the “Pinwheel”?

For readers wondering about its distinctive nickname, the galaxy is called a Pinwheel because of its beautifully defined, symmetric spiral arms that gracefully sweep out from a central bar.

When viewed face-on from Earth, these star-studded arms resemble a classic, spinning child’s toy wheel. Because it is located in the southern sky within the constellation Hydra, astronomers appended “Southern” to differentiate it from its northern counterpart, Messier 101.

Orbital Mechanics & Spatial Coordinates

To resolve M83, the smart telescope’s GoTo mount registers specific coordinates within the southern celestial hemisphere. M83 sits on the border of the constellations Hydra and Centaurus.

Right Ascension (RA): 13h 37m 00.9s
Declination (Dec): −29° 51′ 56″
Apparent Magnitude: +7.6 (requires optimal sensor sensitivity to cleanly pull from background noise)
Distance: Approximately 15 million light-years from Earth.

Resolving Power of the DWARF mini
Integrating for nearly an hour (59m 15s) allows the DWARF mini’s automated stacking algorithm to build up the signal-to-noise ratio (SNR). This exposure window is critical for overcoming light pollution and drawing out the faint, loosely wound arms classified under its SAB(s)c barred spiral profile.

The resulting data frames clearly resolve the bright central bar structure, along with the distinct asymmetrical glow of its outer stellar nurseries.

The Dwarf Mini’s Stellar Studio provided ‘Auto’ correction to noise removal and star corrections. Finally,  I used the Samsung S26 Ultra photo editor for the final edits.

Comparative Analysis: M83 vs. M101
When optimizing exposure times, it helps to analyze structural morphology against an evolutionary counterpart. Astronomers often compare M83 to Messier 101 (M101), the Northern Pinwheel Galaxy.

While they share physical similarities, their scale and star-forming dynamics differ dramatically:

Mass Density & Star Count: M101 is an expansive grand design spiral housing roughly 1 trillion stars across a 252,000 light-year diameter. Conversely, M83 is far more compact, containing 40 billion stars spanning roughly 55,000 to 118,000 light-years.

Starburst Dynamics: Despite its smaller size, M83 exhibits massive starburst activity. Its core acts as a high-density star factory fueled by dense H II regions.

Supernova Frequency: M83 is an incredibly volatile environment. Six supernovae have been cataloged here within the modern era (including SN 1923A, SN 1950B, and SN 1983N), showcasing rapid stellar lifecycle turnover compared to more stable spiral structures.

Technical Reference Links
Structural & Historical Overview: Detailed documentation via the Wikipedia Messier 83 Page.

Positional Ephemerides: Coordinate mapping and target visibility guides on the AstroPixels Messier 83 Database.

Deep-Space Imaging Analysis: Space-telescope observations and multi-wavelength profiles on the European Southern Observatory (ESO) M83 Index.

There is a quiet magic that happens in the brief window between sunset and nightfall. While the bustling streets of Bengaluru hum with the usual evening rush, a completely different kind of rush hour takes place if you look upward into the skies above.

On the evening of June 17, 2026, the sky cleared just enough to grant a spectacular front-row seat to a rare, fleeting celestial dance: a four-body alignment featuring Venus, Jupiter, Mercury, and a slender crescent Moon.

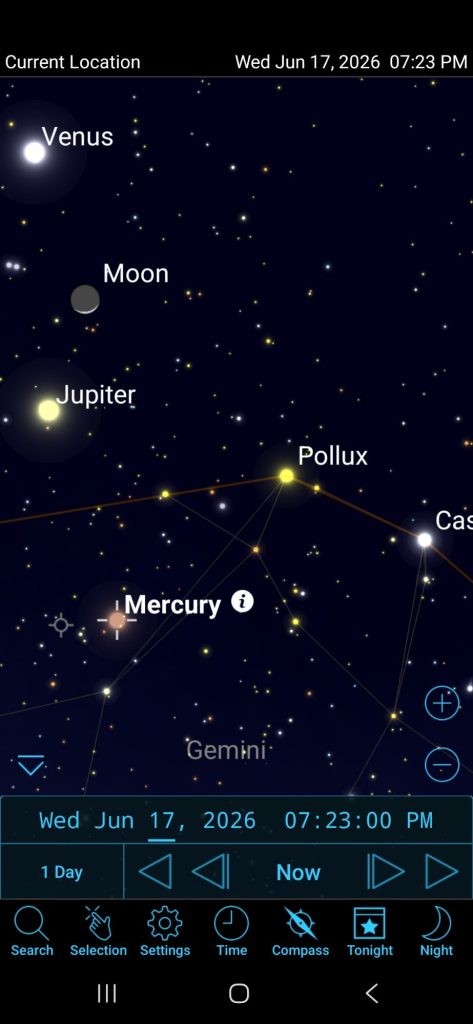

Armed with a smartphone camera,  a tripod, the Sky Safari App  and a clear western horizon, I tracked these cosmic wanderers as they chased the sun below the tree line.

This is the minute-by-minute chronicle of how the twilight faded, how an elusive planet was won, and how a technical photography session transformed into a deeply divine experience.

The Sunset Timeline

As the day concludes, the sun begins its graceful descent. Its golden rays lengthen, casting a warm, soft glow across the landscape. The sky transforms into a canvas of breathtaking colors, blending oranges, pinks, and purples. Each moment of this spectacle is a fleeting masterpiece, a gentle reminder of nature’s beauty.

Capturing a planetary alignment at dusk is a race against a ticking clock. As twilight deepens, the sky acts like a developing photograph—revealing dimmer objects piece by piece, even as the horizon rises to swallow them whole.

7:14 PM – The Early Lineup

The session began just as dusk settled. Looking up, three of the major players were immediately striking. High in the sky, Venus blazed fiercely at a brilliant magnitude of roughly -4.0, acting as the anchor of the parade. Below it hung a beautiful, slender waxing crescent Moon, about 12% illuminated. Anchoring the vertical line directly beneath the curve of the crescent was Jupiter. Click the images to open in a new browser tab.

At this stage, however, Mercury was entirely missing—buried completely inside the thick, bright orange-pink glare of the sun’s twilight twilight curtain.

7:18 PM – Mercury Emerges

As the minutes ticked by and the ambient glare dropped, the sky began to give up its secrets. By 7:18 PM, looking closely at the camera sensor through the twilight gradient, a tiny, incredibly faint speck of light finally broke through.

Sitting at a faint +0.6 magnitude to the lower right of Jupiter, Mercury had officially joined the parade, fighting through the heavy atmospheric haze of the city horizon.

7:21 PM – Cutting the Noise with Astro Mode

By 7:21 PM, I switched over to Samsung’s Expert RAW Astro Photo mode to utilize its multi-frame auto-stacking capabilities. The difference was night and day. The computational stacking completely smoothed out the background atmospheric noise, turning a tricky twilight shot into a crisp portrait. The crescent Moon’s shape sharpened, Jupiter anchored the center-left cleanly, and Mercury—now freed from the muddy sky-glow—stood out as a natural, steady point of light.

7:28 PM to 7:34 PM – The Sky Deepens

As the clock passed 7:28 PM, the true layout of the night sky bared itself. With the darkness intensifying, a new object pierced through the mid-right side of the frame—the bright star Pollux from the Gemini constellation, forming a wide, cosmic triangle with the Moon and Jupiter.

By 7:34 PM, the dark sky allowed the camera to capture a masterclass in Earthshine—where sunlight reflecting off Earth’s own oceans and clouds softly illuminated the dark, unlit shadow of the lunar disk, showing the complete circle of the Moon. Low on the bottom right, Mercury was still holding on, dropping visibly lower by the minute.

7:46 PM – The Slate-Blue Shift
To capture the mood of the deep dusk, I manually tweaked the Auto White Balance, dropping the color temperature down to around 4300 Kelvin. This stripped away the last remnants of warm city light pollution, casting the entire sky in an otherworldly, cinematic slate-blue hue.

In this frame, the entire house was visible: Venus at the peak, the glowing cradle of the Moon, Jupiter below it, Pollux to the right, and Mercury just skirting the top of the dark horizon line, next to the bald tree..

7:50 PM – The Final Second
The chase concluded right at the absolute brink of horizon extinction.

At 7:50 PM, Mercury had plummeted to the very edge of the sky. I managed to capture it one last time, nestled perfectly as a sharp, tiny pinprick in a small gap just to the left of a silhouetted, bald tree branch, a split second before it vanished into the horizon vegetation for the night.

The Motion: 23 Minutes in 19 Seconds
To truly understand how fast these inner worlds move relative to our local horizon, I set up a hyperlapse video to lock onto the alignment. The camera captured 23 minutes of continuous cosmic descent, compressing it into a rapid burst of raw motion, which I then slowed down to a 19-second clip to appreciate every detail.

Refereing to the above video, the planetary descent is mesmerizing:

• You watch the crescent Moon dipping below the heavy silhouette of the trees.
• Venus, sitting incredibly high in its orbit, holds its ground stubbornly at the top of the frame.
• If you keep your eyes on the tree line around the 0 to 3-second mark, Jupiter makes a brief, dramatic cameo, blinking just over the branches before it is entirely cut off by the horizon.

The Transcending Lens: A Divine Choreography

Standing on the roof in the quiet night air after the camera stopped clicking, the entire experience transcended mere physics, focal lengths, or sensor capabilities.

Watching those massive worlds glide along their paths in absolute silence didn’t make me feel small—it felt like witnessing a silent, Divine Choreography.

In ancient traditions, these celestial movements weren’t viewed as random, clinical clockwork, but as the visible expression of a higher, cosmic order(Rtam).

There is a profound spiritual awakening and an experience of awe that happens when you witness such perfect harmony up close. It’s blissfully divine – Ananda! ✨️
